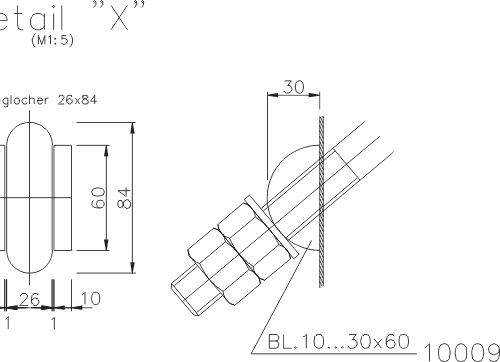

The detail "X"
|
|||||
|
... shows the technical analysis of the wind bracing.
The weld symbols are the part of each plan in the way that during the working procedures it is possible to devote oneselves only to work without useles seeking the design of a concrete weld in another document.
The location and the type of a weld id absolutely evident here.
|
