The reducing pipe (the reducer) - an unrolled form
|
|||
This detail serves the purpose of the production; an extract marking-off an unrolled form on the material of production (metal sheet).

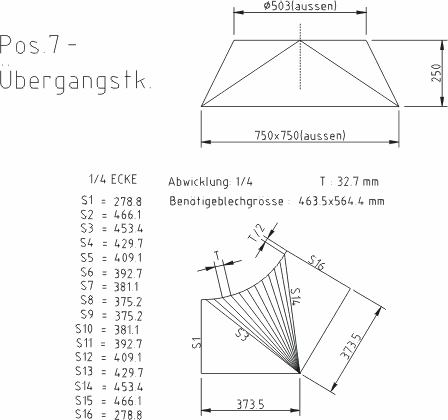

The drawing program will generate an illustrated detail on the basis of the main entered dimensions of the reducer.
|
