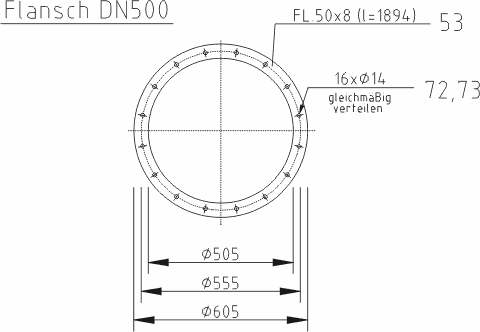

The union flange
|
|||
| It
is made (roll bended) from the of 50 x 8 mm flat steel, of the 1894 mm
of unrolled length.
The material damping allowance for the bending equipment is taken in the mentioned length.
16 regularly divided openings of 14 mm diameter ensures the perfect connection.
|
