The 90°elbow
- an unrolled form |
|||
|

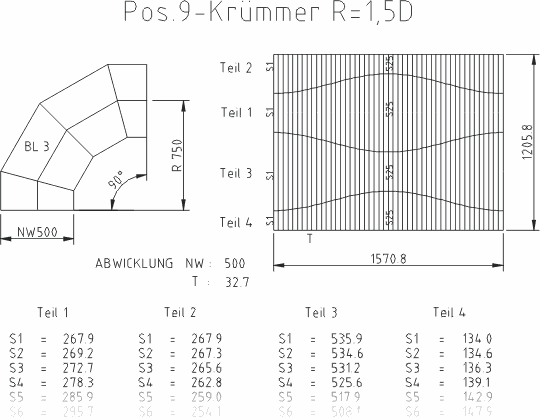

The detail serves the purpose of the production; an exact marking-off an unrolled form on the material of production (metal sheet).
The drawing program will generate an illustrated detail on the basis of the main entered dimensions of the elbow. Notice the economic elbow segments in the way that maximum size of the metal sheet shall be used without useless waste material.
|
